Shower Door Hinges in Northern Virginia
Family owned since 1997 · Installed by our own crews · Virginia Class A Glass & Glazing Contractor
Square and beveled wall-mount hinges from CRL, in standard and heavy duty, including the Zero hinge set, plus pivot hinges and headers. We help you choose the right hinge for your door and glass, and our own crews install it.
Wall-mount shower door hinges, grouped by style and by the size of door they’re built for, with pivot hinges and headers at the bottom. Scroll down to see every hinge. Hover over or tap a finish to see a larger sample.
Hinge Terms, Explained
- Full back plate
- The plate that fastens to the wall is centered behind the hinge. The ‘H’ back plate is a full plate shaped like an H.
- Offset back plate
- The wall plate sits off to one side of the hinge instead of centered behind it.
- Standard duty
- For doors in 3/8″ glass up to 28″ wide.
- Heavy duty
- For doors wider than 28″ and for 1/2″ glass doors.
- Self-centering
- Let the door swing back near closed and it settles into the closed position on its own.
- Self-closing
- The hinge pulls the door shut by itself from an open position.
Each hinge below lists the manufacturer’s maximum door width. We help you choose the right hinge for your door size, glass and layout at the measure.
Square Hinges
Standard-duty hinges are for doors in 3/8″ glass up to 28″ wide. Heavy-duty hinges, marked in red, are for doors wider than 28″ and for 1/2″ glass doors.

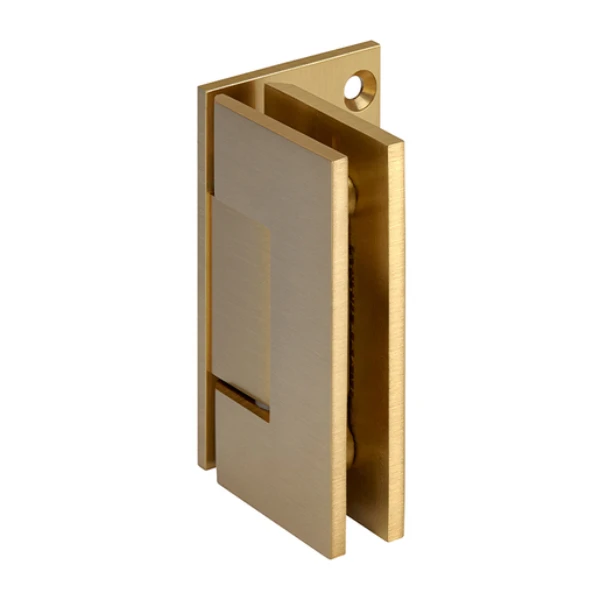

Geneva 044
Geneva Wall Mount Offset Back Plate Hinge · GEN044
Also in Gold Plated, Antique Brass.
A classic square hinge with an offset back plate. The door settles closed on its own when you let it swing back near the closed position.
Max door width: 28″ with 2 hinges, 32″ with 3 hinges
Glass: 5/16″ to 1/2″

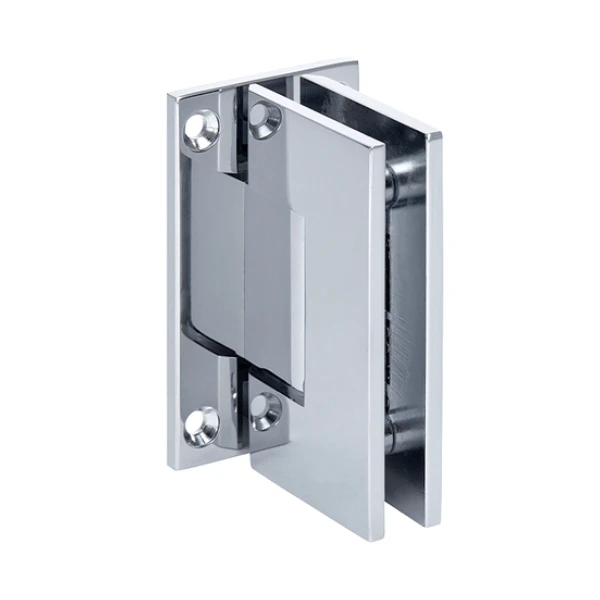

Geneva 037
Geneva Wall Mount Full Back Plate Hinge · GEN037
Also in Polished Copper.
The same square Geneva hinge with a full back plate on the wall. Self-centering, so the door settles closed on its own.
Max door width: 28″ with 2 hinges, 32″ with 3 hinges
Glass: 5/16″ to 1/2″

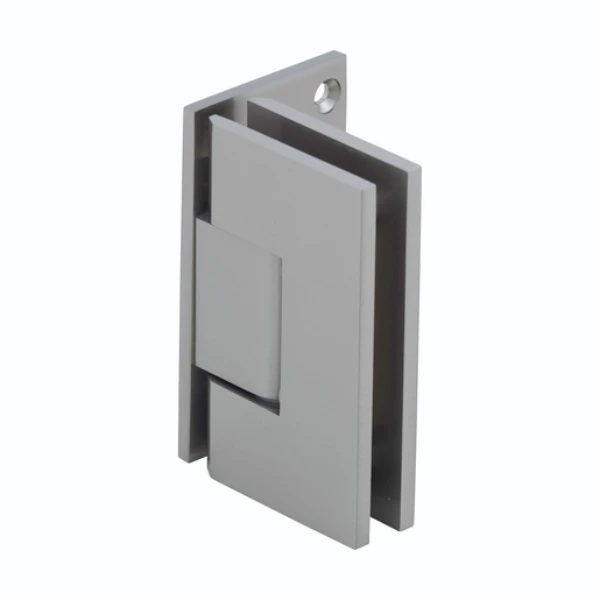

Vienna 044
Vienna Wall Mount Offset Back Plate Hinge · V1E044
A larger square hinge made for wider, heavier doors. Offset back plate, self-centering.
Max door width: 34″ with 3/8″ glass, 32″ with 1/2″ glass
Glass: 3/8″ to 1/2″

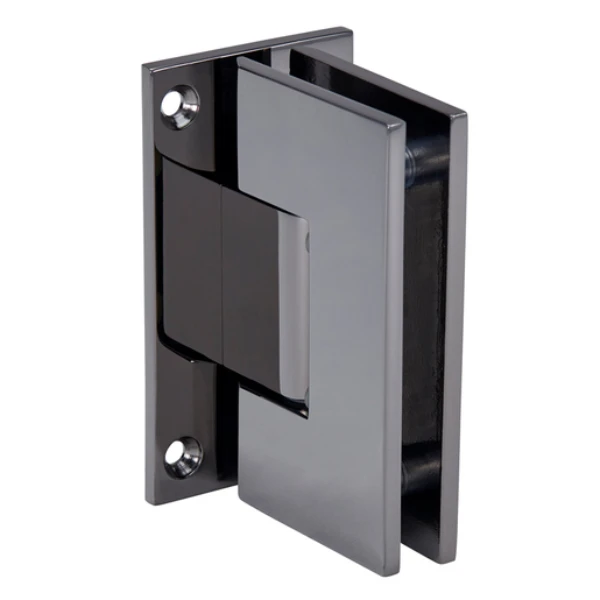

Vienna 037
Vienna Wall Mount Full Back Plate Hinge · V1E037
The heavy-duty Vienna with a full back plate — one of the widest finish ranges. Self-centering.
Max door width: 36″
Glass: 3/8″ to 1/2″

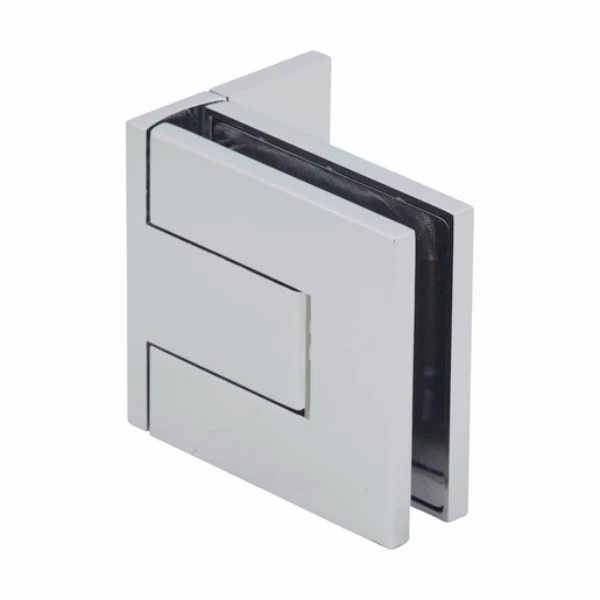

Palermo
Palermo Adjustable Wall Mount Offset Back Plate Hinge · PAL044
A sleek square hinge. The closed position can be fine-tuned with the door already hanging, and two hinges can carry a door up to 39″ wide.
Max door width: 39″ (2 hinges)
Glass: 3/8″ to 1/2″

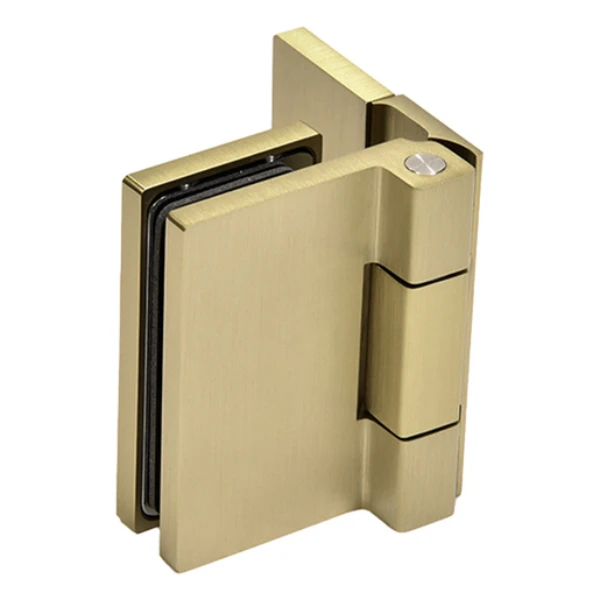

Como 044
Como Wall Mount Hinge · C0M044
A premium hinge that swings freely through 180°, so the door can open in or out. Snap-on covers hide the screws. It is free swinging, not self-centering, so the door stays where you leave it.
Max door width: 39″
Glass: 5/16″ to 3/8″

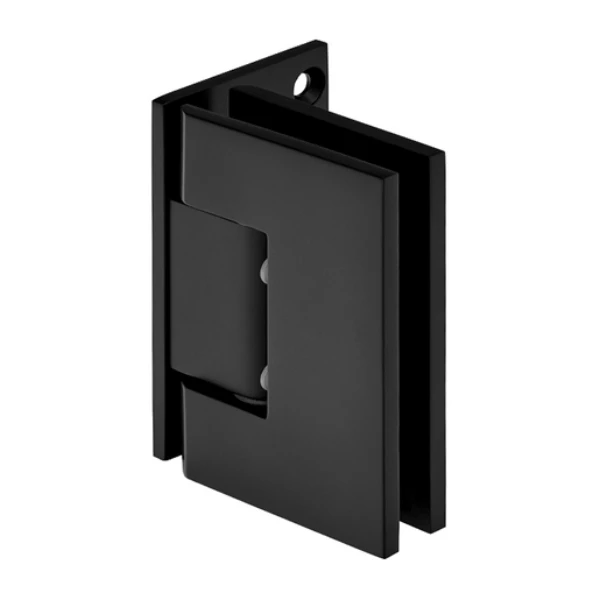

Melbourne 044
Melbourne Wall Mount Offset Back Plate Hinge · MEL044
Large hinge plates give a stronger grip on the glass. Self-centering, and the glass needs only a simple rectangular cut-out.
Max door width: 30″ with 2 hinges, 34″ with 3 hinges
Glass: 5/16″ to 1/2″

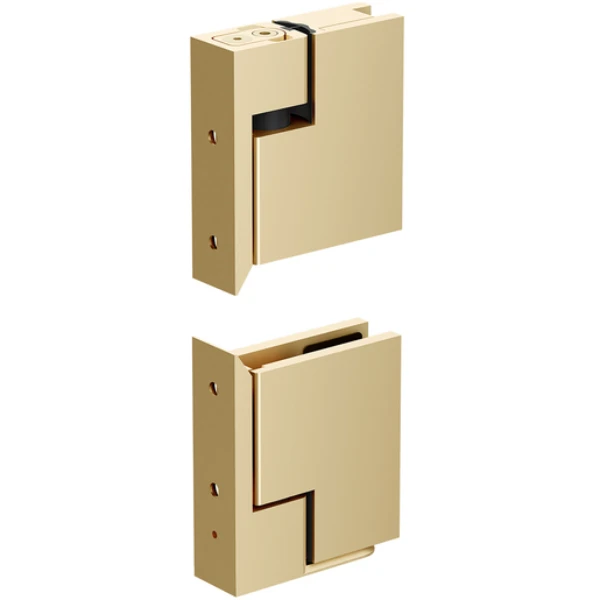

Zero Hinge Set
Zero Hinge Set · ZER000
Part of the Zero collection. Snap-on covers hide all the mounting hardware, and the door rises 1/4″ as it opens. A second set turns it into a glass-to-glass hinge.
Max door width: 45″
Glass: 3/8″ to 1/2″
Beveled & Rounded Hinges
Standard-duty hinges are for doors in 3/8″ glass up to 28″ wide. Heavy-duty hinges, marked in red, are for doors wider than 28″ and for 1/2″ glass doors.

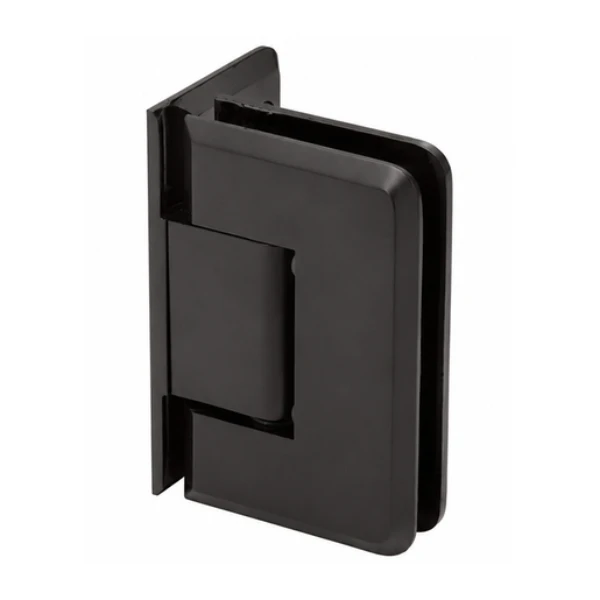

Pinnacle 044
Pinnacle Wall Mount Offset Back Plate Hinge · P1N044
A beveled hinge with an offset back plate. Self-centering, so the door settles closed on its own.
Max door width: 28″ with 2 hinges, 32″ with 3 hinges
Glass: 5/16″ to 1/2″

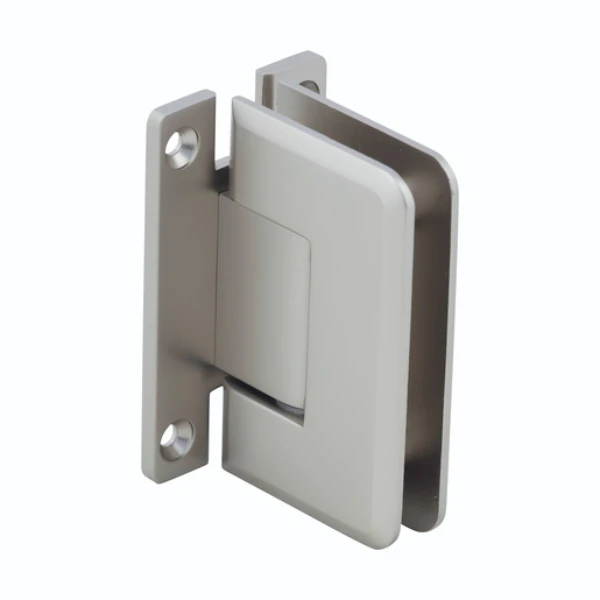

Pinnacle 037
Pinnacle Wall Mount ‘H’ Back Plate Hinge · P1N037
Also in Ultra Brass, Antique Brass.
The beveled Pinnacle with a full ‘H’-shaped back plate. Self-centering.
Max door width: 28″ with 2 hinges, 32″ with 3 hinges
Glass: 5/16″ to 1/2″

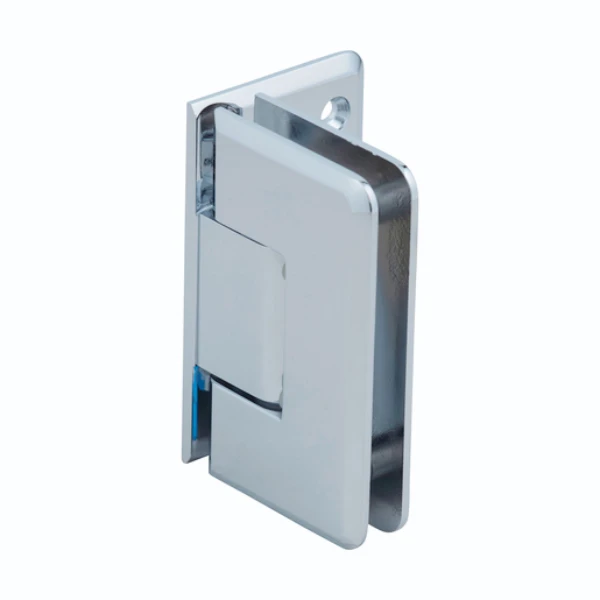

Cologne 044
Cologne Wall Mount Offset Back Plate Hinge · C0L044
Also in Gold Plated.
The larger beveled hinge, with an offset back plate. Self-centering.
Max door width: 34″ with 3/8″ glass, 32″ with 1/2″ glass
Glass: 3/8″ to 1/2″

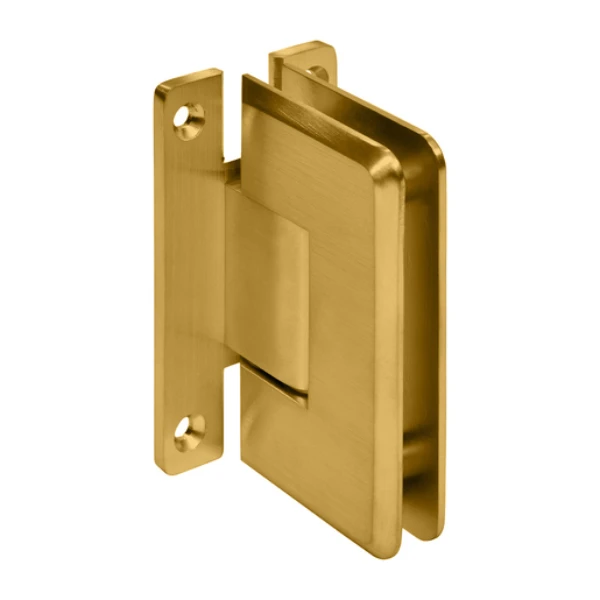

Cologne 037
Cologne Wall Mount ‘H’ Back Plate Hinge · C0L037
Also in Satin Chrome.
The heavy-duty beveled Cologne with a full ‘H’ back plate, in one of the widest finish ranges. Self-centering.
Max door width: 36″
Glass: 3/8″ to 1/2″

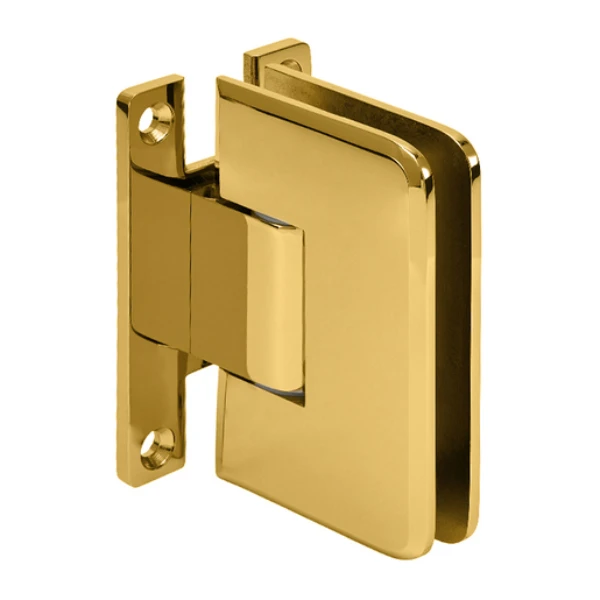

Plymouth 037
Plymouth Wall Mount ‘H’ Back Plate Hinge · PLY037
Built for heavier, wider doors, with a built-in safety interlock for better control of the glass panel.
Max door width: 39″
Glass: 3/8″ to 1/2″

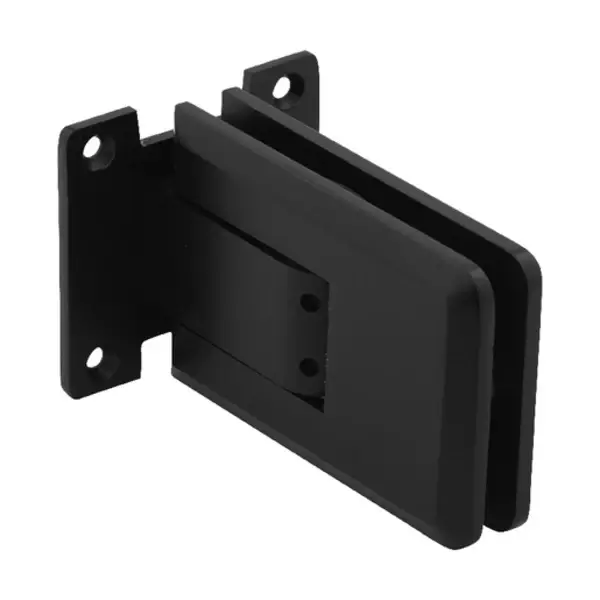

Atlas
Atlas Glass Door Hinge · ATL01
A beveled hinge that is self-centering and holds the door open at 90°. The closed position is easy to set during installation.
Max door width: 39″
Glass: 5/16″ to 1/2″
Pivot Hinges
Pivot hinges mount at the top and bottom of the door instead of on the wall, and can be paired with a header.

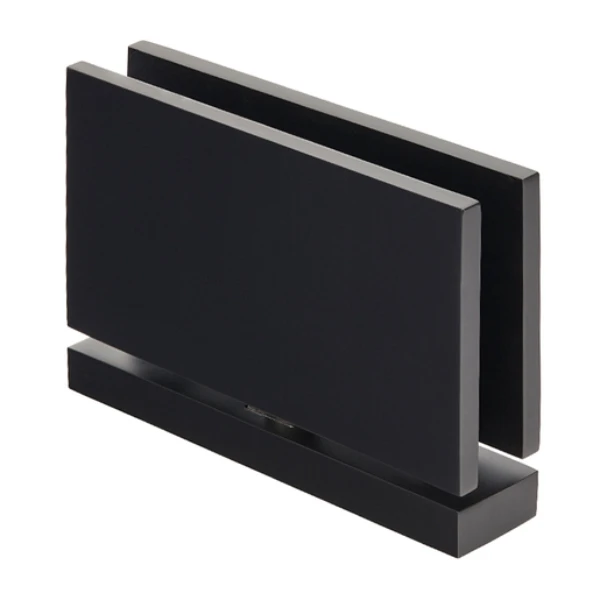

Cardiff Pivot Hinges
Finishes shown for the Senior Cardiff. Other models may vary.
Square-cornered pivot hinges that mount at the top and bottom of the door. Cardiff suits 5/16″–3/8″ glass; Senior Cardiff is for 1/2″.

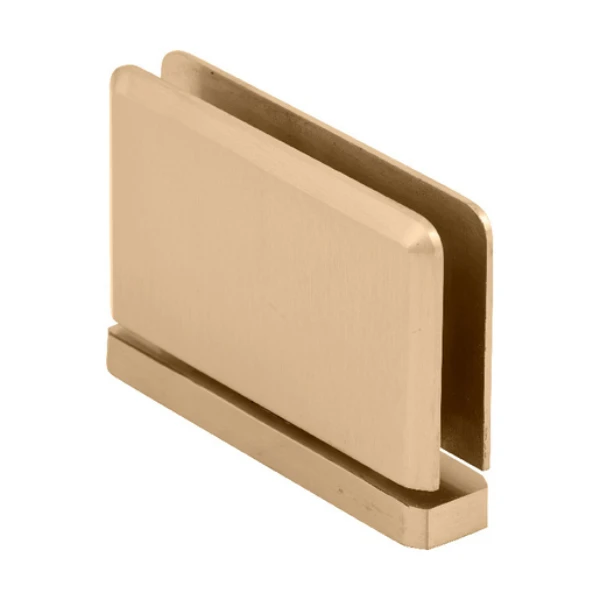

Prima Pivot Hinges
Finishes shown for the Prima 01 top or bottom mount. Other models may vary.
A beveled pivot hinge that mounts at the top and bottom of the door and works with the Deluxe Header. Self-centering.
Glass: 5/16″ to 3/8″

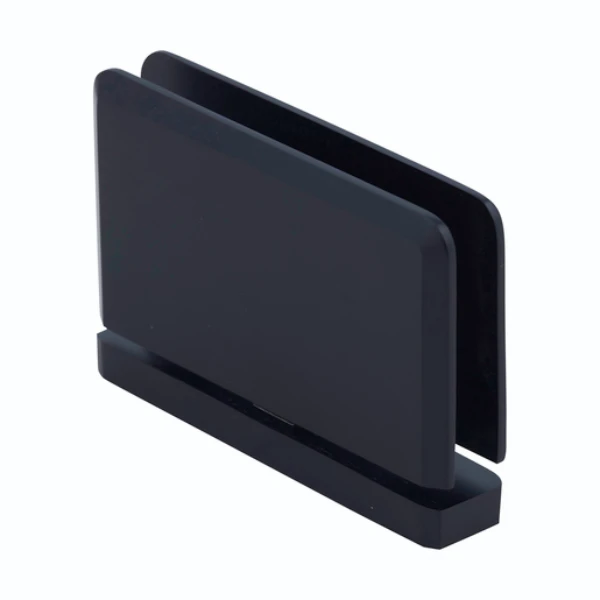

Senior Prima Pivot Hinges
Finishes shown for the Senior Prima 01 top or bottom mount. Other models may vary.
The heavier Prima pivot hinge for 1/2″ glass, top or bottom mount.
Glass: 1/2″
Headers & Parts
A header runs across the top of the enclosure to support glass that doesn’t reach the ceiling. Adapter blocks connect pivot hinges to the header.

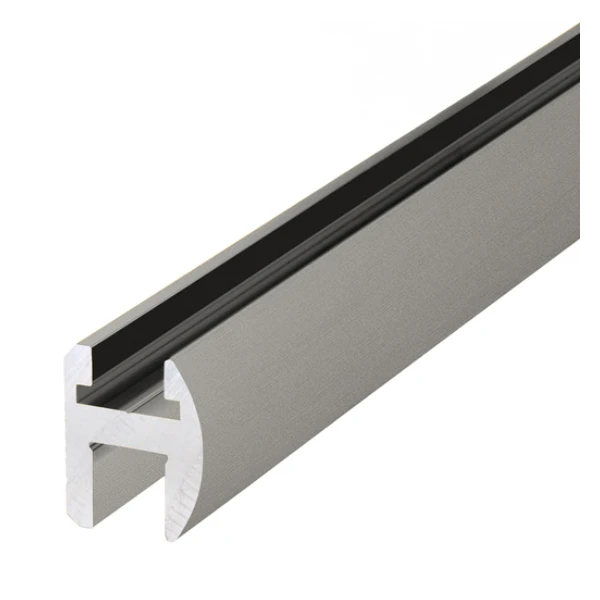

Deluxe Shower Door Header Kit
Finishes shown for the 95″ kit. Other models may vary.
An aluminum header across the top of the enclosure that supports glass not reaching the ceiling. A narrow 1-1/4″ face keeps the sight line slim. 66″, 95″ and 144″ kits.
Glass: 5/16″, 3/8″ or 1/2″

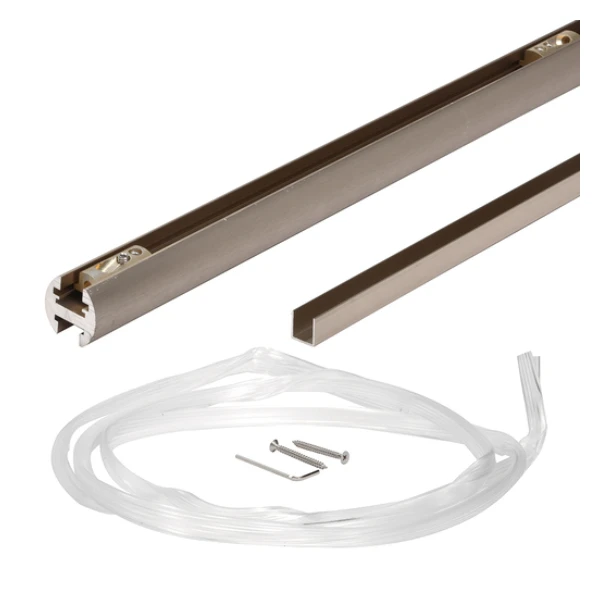

EZ-Adjust Shower Door Header Kit
Finishes shown for the 95″ kit. Other models may vary.
A header kit that lets the hinge be adjusted side to side after installation. With Prima PPH06 or Senior Prima SRPPH06 hinges, no hole is drilled through the header for the adapter.
Glass: 3/8″ to 1/2″

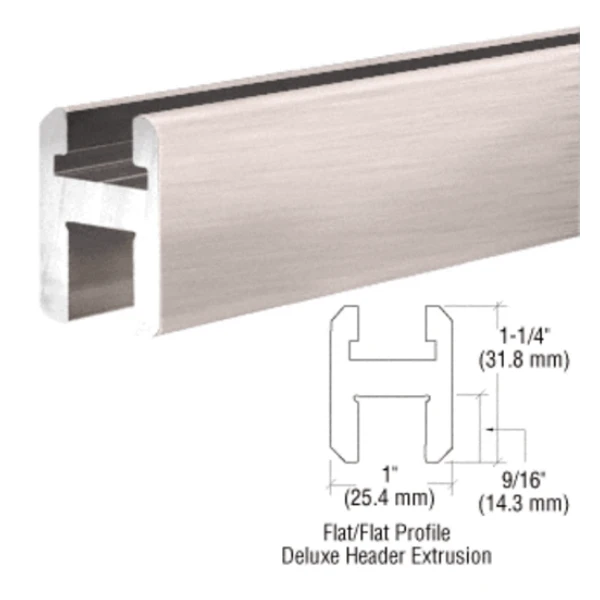

Flat/Flat Profile Deluxe Header Kit
The Deluxe Header in a flat-sided profile for a squarer look. 95″ kit.
Glass: 5/16″ to 1/2″

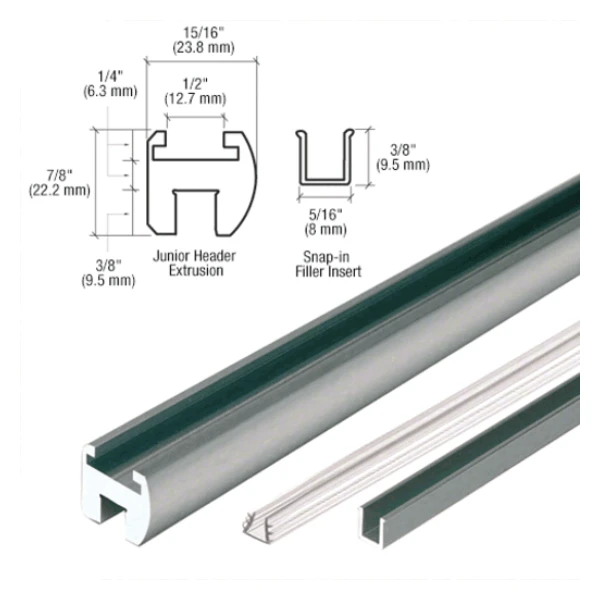

Junior Frameless Shower Door Header Kit
A header for 1/4″ glass with a rounded side and a flat side. 98″ length, used with Junior Prima hinges and the Junior adapter block.
Glass: 1/4″

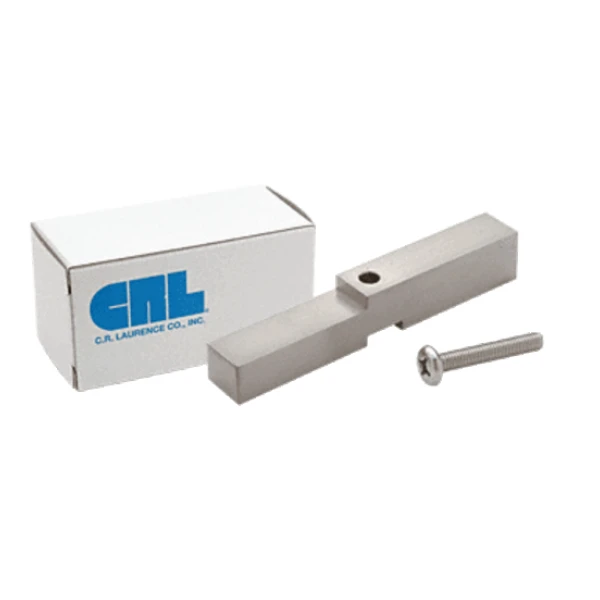

Header Adapter Blocks
Finishes shown for the standard block. Other models may vary.
Blocks that let a pivot hinge mount directly into the header. The standard block fits Prima and Cardiff hinges; Senior and Junior blocks fit Senior Prima/Senior Cardiff and Junior Prima.

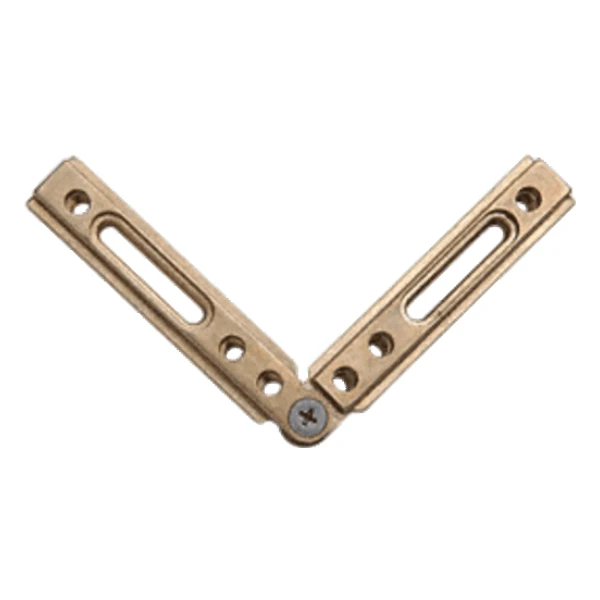

Header Corners & Brackets
Brass and aluminum corners (90°, 135° and adjustable) and ‘T’ brackets that slide into the slot on top of the Deluxe Header, plus wall-mounting brackets.
Product names, photos, specifications and finish availability are from CRL (C.R. Laurence), the manufacturer. Availability can change — we confirm your exact hardware and finish before ordering.
